ACtive trap PA3 The passive and smart tritium solution
Derived from the PA3 passive trap, this version is suitable for online sampling for chimney or glove box control. With 100% moisture adsorption efficiency, this active VERSION of PA3 becomes an easy-to-use, low-cost piece of equipment.
click to enlarge
How it works

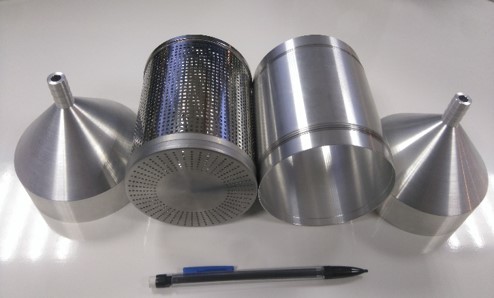

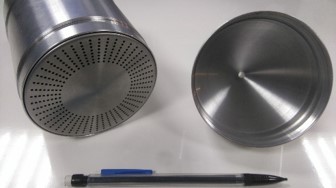

The active PA3 trap consists of a truncated cartridge containing a molecular sieve (adsorbant material) and 2 chimneys allowing air to be sucked through the cartridge.

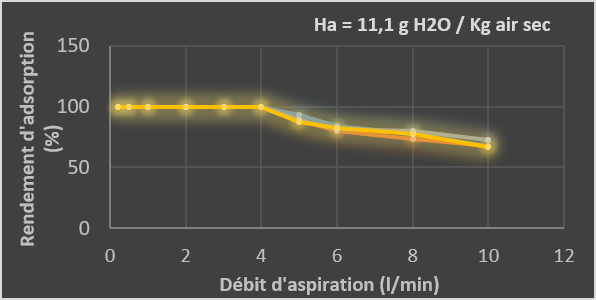

Due to this geometry, the output of adsorption in the mass of tritiated water is homogeneous over the entire sieve and 100% (the tritiated water is totally trapped) up to a suction rate of 4 liters per minute.

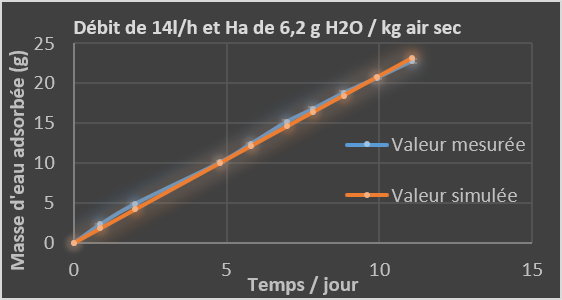

The trapped mass of tritiated water is easily estimated. M(g) HTO - Flow - time - Ha
Pre-filled cartridge (molecular tamis)
|Molecular sieve||type Zéolite 13X|
|Regeneration (with BAN3)||10x min.|
|Max suction flow.||4 l/min|
|Material||Stainless steel 304 L|
|Dimensions||L=100 mm, ∅=90 mm|
- Product sheet Active Trap PA3, 280 ko
