α/β-AMES Automatic multi evaporator for alpha and beta overall analysis in water samples

In close collaboration with IRE Elit, subsidiary of the Institute of Radioelements - IRE, we have developed a new generation of automatic evaporator dedicated to the preparation of sample evaporation on Cup for analysis by counting α/β global waters.

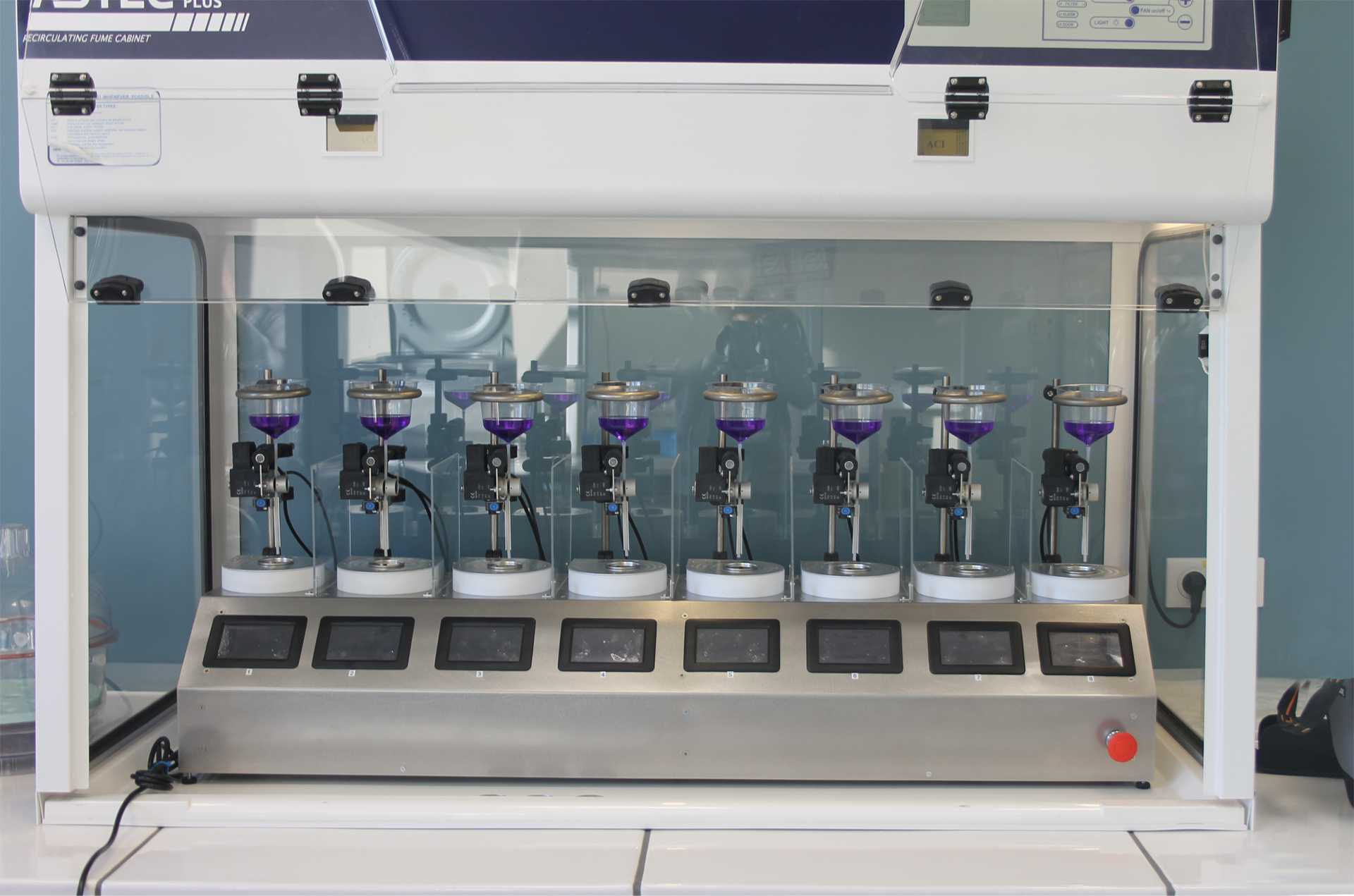

Evaporator img1

click to enlarge

  • évaporateur-vue-de-face
  • Evaporator img4
  • Evaporator img5
  • Evaporator img3
  • Evaporator img2

  • General introduction

  • Specifications

  • Documentation

A compact evaporator

Evaporator α/β-AMES built-in 2-way up to 8 independent channels in an reduced format to optimize the workspace: the maximum length of the evaporator remains inferior than 130 cm, allowing installation in a Sorbonne of extraction if necessary.

An homogeneous evaporation

Thanks to an innovative approach by a contactless water level measurement of precision (0.06 mm), the automatic evaporation process to reduce consumables, guaranteeing a uniform filling and a dry deposition on homogeneous Cup overall for the alpha/beta analysis.

The temperature is perfectly uniform across the plate to avoid ‘overheating’ areas that could lead to losses by projections.

Thermography

A robust and intuitive system

Share its design and the choice of materials used, the evaporator is waterproof and resistant to acids (especially in the HNO3). The operator interface is performed through a touch screen and is intuitive for ease of use.

Advantages

  • Compact system
  • Reduction of consumable
  • Number of ways
  • The dry deposition homogenous
