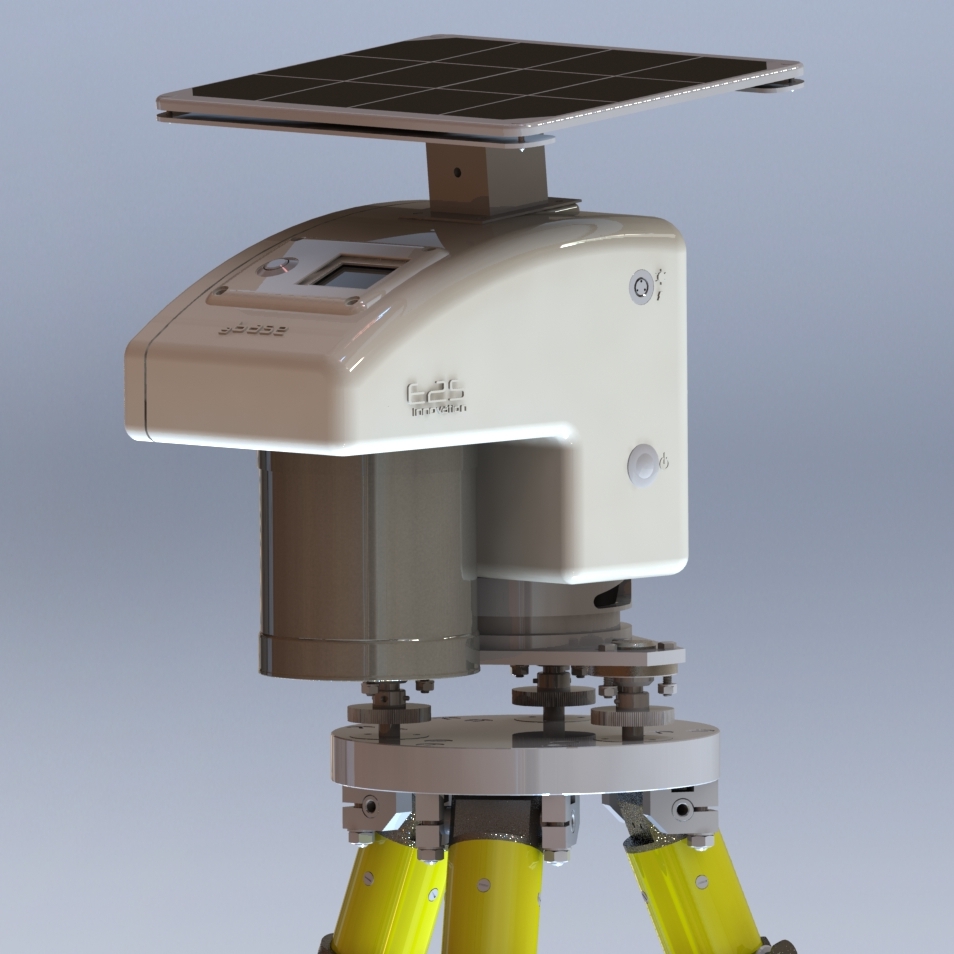

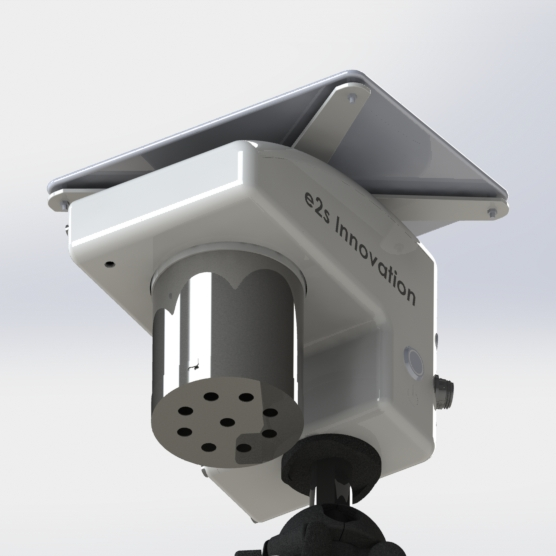

3BASE Tritium trap for atmospheric mapping and tracking position
Connected to the passive trap SMART PA3, this equipment, easily deployable on the field, is the perfect, easy to use and standalone solution for analysis and ongoing monitoring of tritium sampling.
click to enlarge
General introduction
Specifications
Documentation
3BASE works completely independently and transmits wireless (Bluetooth) ongoing collection and real-time data to the user with our mobile app APP3.
This innovative solution is ideal for radiological monitoring in the environment, to emergency situations or to post studies in buildings (laboratories, facilities, decommissioning).
Technical descriptions | |
---|---|
Contactless technology | Bluetooth LE 4.0 NFC (min ANDROID 4.3) |
Built-in GPS | 3 m precision |
Power supply | |
Battery Type | Rechargeable Li-ion Battery |
Battery voltage | 3,7 V |
Battery Life | 260 hours |
Charging System | AC/DC adapter (supplied) photovoltaic panel (optionally) |
Charging time | 100% in 8h (adapter AC/DC) Full autonomy (solar panel)1 |
Technical specifications | |
Dimensions (W × D × H) | 215 mm x 130 mm x 156 mm |
Weight | 1.35 kg |
Mounting on tripod | Screws 1/4’’-20, (adapter 3/8’’ optionally) |
